Home Jet Suction Dredger

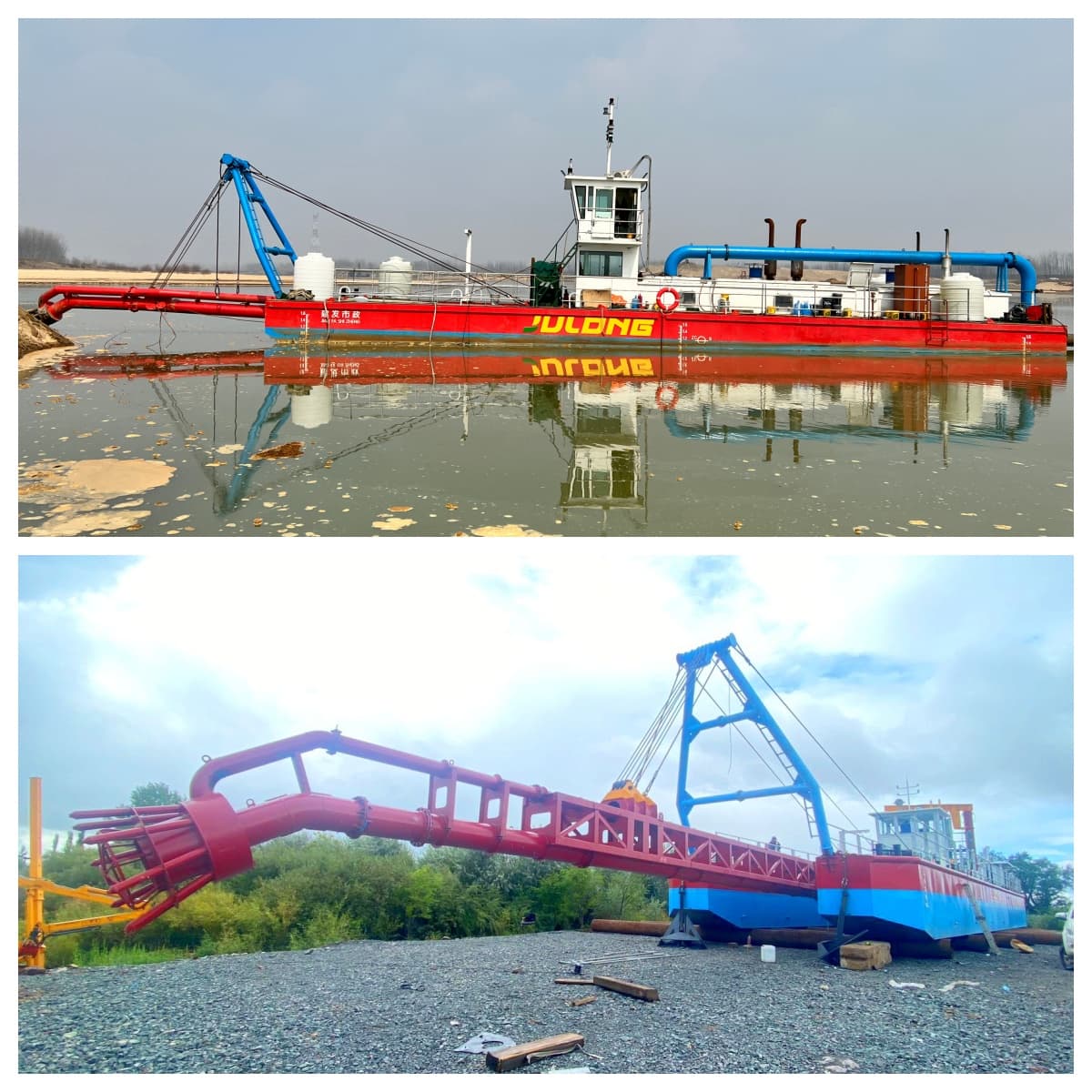

Electric /Diesel Driven Jet Suction Dredger for River Dredging

Name: Electric /Diesel Driven Jet Suction Dredger for River Dredging
Availability: InStock

JuLong Jet suction dredger, equipped with high-preasure water jet and water pump, pumps sand and then discharge it to the destination by pipeline. Julong jet suciton dredger is easy to operate and of high efficiency, which is applied for rivers dredging, lakes and ponds desilting, land reclamation, ports cleaning and sand pumping, etc. The dredger is equipped with sand pump from 4 inch to 30 inch and the maximum dredging capacity is about 8000 m3/hr.

Inquiry Now

General Introduction of JULONG Jet Suction Dredgers

The Jet Suction Dredgers are of steel construction, non self-propelled, dismountable type, which are able to berth and dredge at any waters both in the coastal area and inland rivers.
- Dredging depth: 5.0 m -30.0 m
- Dredging capacity: maxi. 8000m3/hr mixture capacity
- Discharge distance: 0-3000 m or more with booster pump station
- Usage: sand dredging, waterway cleaning, reclamation work, mining job, etc.

Electric /Diesel Driven Jet Suction Dredger for River Dredging

Technical Parameters

Model	Dredging Capacity	Dredging Depth	Suction /Discharge Pipe Dia.	Engine(s) Power
JLJSD200	500-600 m3/hr	1-8 m	200 /200 mm	160-300 kw
JLJSD250	800-1000 m3/hr	1-10 m	250 /250 mm	200-400 kw
JLJSD300	1200-1400 m3/hr	1-14 m	300 /300 mm	400-600 kw
JLJSD400	2000 -2500 m3/hr	1.5-15 m	400 /400 mm	700-1200 kw
JLJSD500	3500-4000 m3/hr	1.5-18 m	600 /500 mm	1100-1600 kw
JLJSD650	5000-6000 m3/hr	1.5-20m	650 /650 mm	2200-2500 kw
JLJSD750	7000-8000 m3/hr	1.5-25 m	750 /750 mm	2800-3500 kw
Remarks	Above specifications for reference only, Customized design is available.

Why Choose Julong Dredgers?

Customized designs is available according to clients project reqirement. We have our own design team and also support from China ship design institutes and professional colleges.
All our workders are skilled and have rich experience in the ship design for many years.
Reputed sprae parts wll used in dredger,like the world famous Cummins engine, Shijiazhuang pump, Siemens PLC control system and so on.
Every finished dredger will be tested before delivery to assure the dredger run smoothly.
Hydrualic system is one of the most inportant parts of the dredger. Equipment like cutter head, ladder winch, swing winth, spuds are driven by hydraulic motors.
Reputed brand is used like Rexroth, Vikers, Yuken etc.

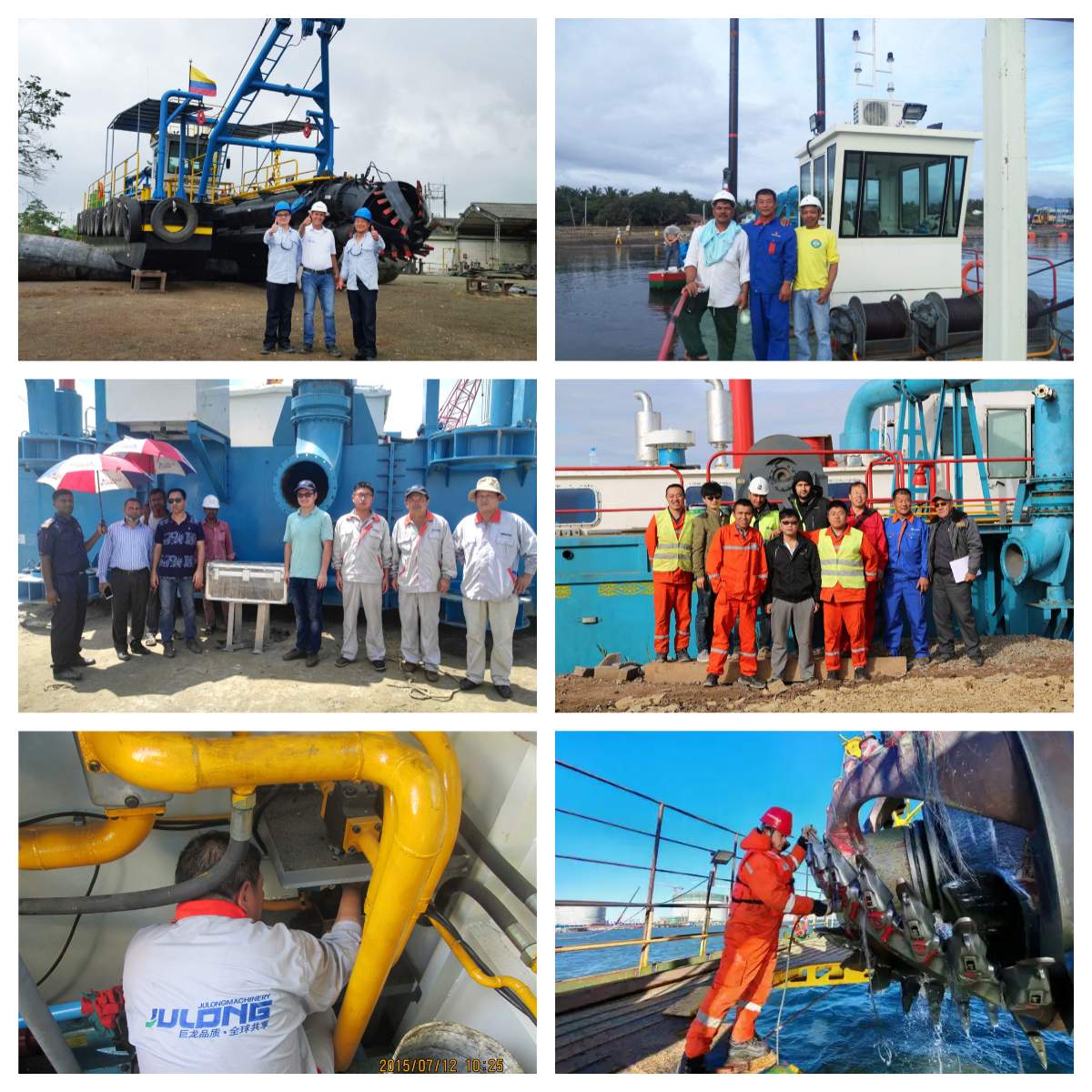

Professional engineers will be sent to project site to help assemble, debugging, testing and training.
The jet suction dredger is dismountable, which can be disassembled and assembled easily. Thus it can be transported more conveniently by road, rail, water.
