Multifunction Amphibious Excavator for Shallow Water Dredging Job

Name: Multifunction Amphibious Excavator for Shallow Water Dredging Job
Availability: InStock

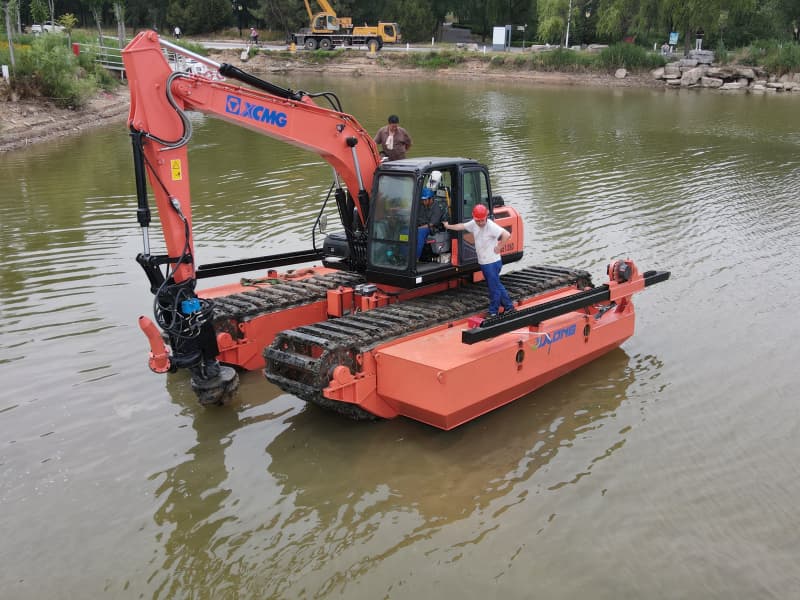

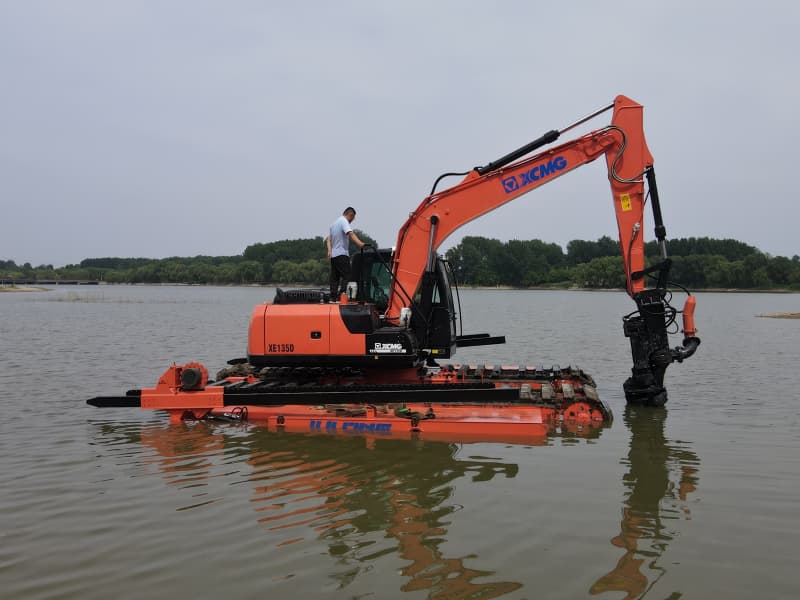

JuLong Amphibious excavators are multi-purpose excavators used in land, shallow water, marsh and deep water areas. After years of practical testing, JuLong amphibious excavator has been recognized and trusted by the majority of users. The upper half structure can choose the excavator brand and all kinds of machine you need. Various types of buoyancy tank have been designed and widely used, which can be adapted to 5-40 ton excavator, and can also be customized according to your working conditions and requirements, in accordance with your exclusive scheme.

Inquiry Now

Features

Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
Optimal configuration of power and hydraulic unit (less operating costs)
Dismountable structure, easy to disassemble, and transportation.
High working range of the outrigger arm
Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
Cutter suction head can be changed for different situation
Easy access to all parts, especially the dredge pump wearing parts.
Freshwater cooling system.
Safe and easy to operate
Can be designed and fabricated according to your requirements

Parameters

PARTS	DESCRIPTION	TECHNICAL PARAMETER
EXCAVATOR	MODEL	XE135D OR CUSTOMIZED
	TONS	13.2T
MAIN PONTOON	FLOATING PONTOON WITH TRACKS QTY	2 PCS
	SINGLE PONTOON SIZE(M)	7.01.31.6
	COMPLETE PONTOON SIZE(M)	7.04.01.6
	PONTOON WEIGHT(T)	10T
	TANK STRUCTURE	EACH PONTOON HAS 3 SEPARATE TANKS
	PONTOON MATERIAL	Q345

The advantages of amphibious excavators include their versatility to transition seamlessly between land and water, their minimal ecological impact, and their operational stability due to floating pontoons and adjustable buoyancy systems.

They are also cost-effective as they can reduce the need for additional equipment like barges. The modular design allows for easy disassembly and transport to remote or challenging locations.Full dismantled and packed in different packages for easy transportation.. With this method, it will save much cost for buyer transporting.
