JLCSD750 Big Cutter Head Suction Dredger 8000 m3/h for Sea River Lake Dredging and Mining

Name: JLCSD750 Big Cutter Head Suction Dredger 8000 m3/h for Sea River Lake Dredging and Mining
Availability: InStock

The Julong 30 Inch JLCSD750 Cutter Suction Dredger epitomizes the pinnacle of engineering ingenuity and precision. This machine is meticulously crafted to deliver unmatched efficiency in the extraction and management of sand, mud, and gravel from diverse aquatic environments, including rivers, lakes, ponds, and lagoons. At its core, the dredger boasts the powerful synergy of a Cummins marine diesel engine paired with a Shijiazhuang dredge pump. This robust combination ensures that the JLCSD750 consistently performs at optimum levels, providing reliability, power, and efficiency in every operation.

Moreover, this versatile dredger is not only a powerhouse in dredging operations, but it also plays a crucial role in the facilitation of port construction and the maintenance of vital navigation channels. Its seamless operability allows it to efficiently dredge a variety of materials such as sand, mud, clay, silt, and other sediments from the waterbed. This ensures the uninterrupted passage of vessels, maintaining essential waterways and supporting maritime activities with exceptional ease and effectiveness.

Inquiry Now

Key Features

World-Class Spare Parts:
Our dredgers integrate top-tier components such as the illustrious Cummins diesel engines, advanced Siemens PLC control systems, and the exceptional Shijiazhuang pumps. These premium spare parts, combined with our streamlined production flow, guarantee unparalleled quality and optimal performance in all our dredging solutions.

Replaceable Cutter Teeth: Specifically engineered to elevate your dredging efficiency, these teeth feature robust big shaft power, ensuring superior performance and lasting durability.

Extended Ladder: Masterfully designed to reach significant dredging depths effortlessly, this ladder transforms every operation into a model of efficiency and productivity.

Anti-Corrosion Dredger Pontoon: Exquisitely shielded to withstand the harshest elements, this pontoon guarantees exceptional longevity and unwavering reliability in all conditions.

Marine-Grade Steel Plate: Expertly crafted to endure the most demanding marine environments, offering unmatched strength and resilience.

Marine Epoxy Painting: Professionally applied in an impressive 4 protective layers, this coating ensures exceptional corrosion resistance, safeguarding the dredger's value.

Zinc Anode Welding on the Hull: Offers state-of-the-art protection against corrosion, meticulously preserving the structural integrity and longevity of the dredger

Compliant with International Standards

Company can build dredger as per international classification standards (RS, RINA, BV, CCS) and holds CE certification, ensuring eligibility for global market deployment. Cost-conscious customers can opt for reliable Chinese brand components to balance performance and procurement costs.

24/7 Support & Lifetime Service

Round-the-clock access to professional sales, design, and manufacturing teams; technical assistance covering on-site commissioning, operator training, and long-term maintenance.

Customizable Optional Equipment

Available add-ons include spud carriages for stable positioning, anchor booms for precise operation control, and other tailored accessories to fit specific project needs.

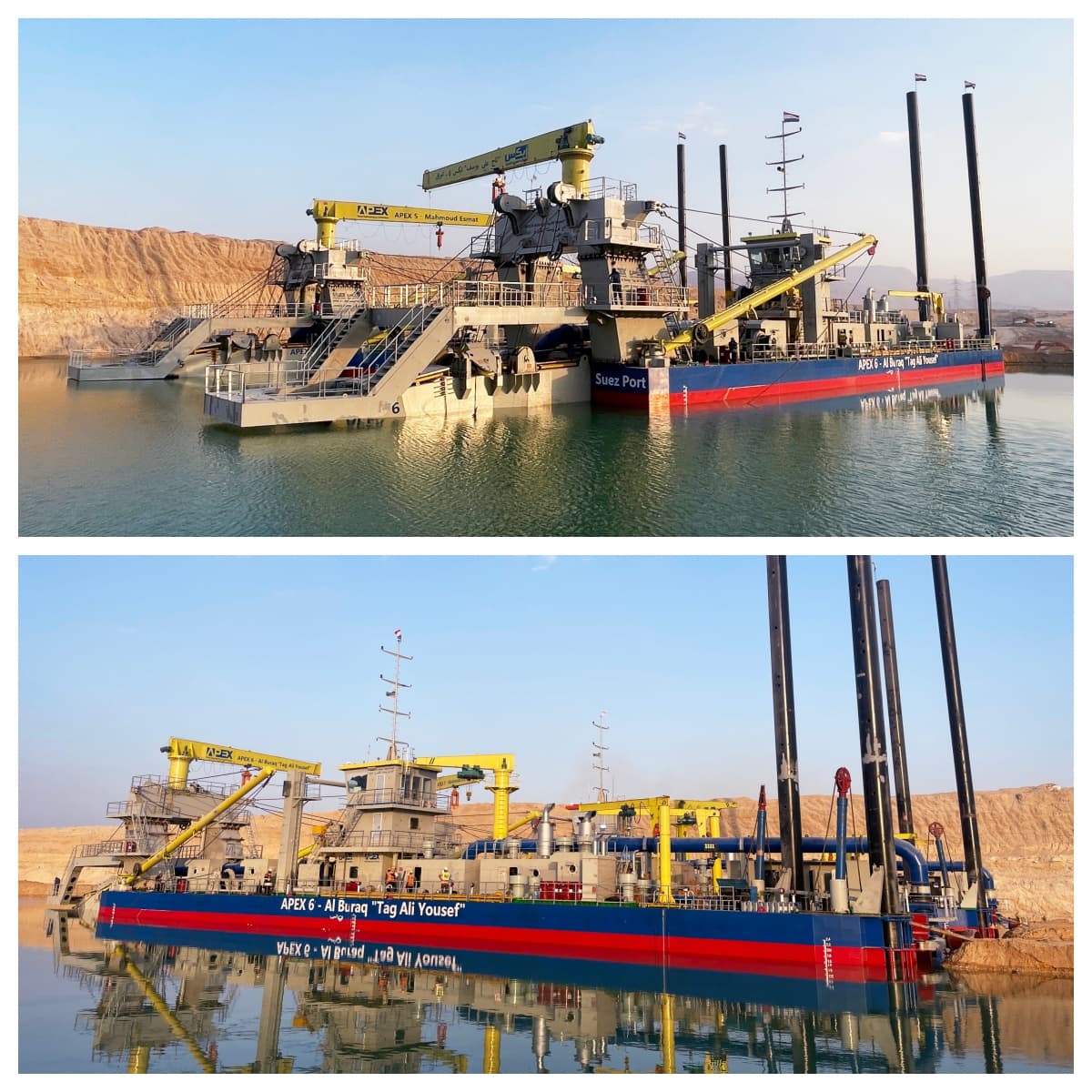

Big Cutter Head Suction Dredger JLCSD750 with Pump 8000 M3/hr for Sea River Lake Dredging and Mining Project

Technical Specifications

Parameter	Specification	Note
Model	JLCSD750	26-Inch CSD
Flow Capacity (Mixture)	8000 m³/h	15-30% concentration typically
Max. Dredging Depth	25.0 m	Customizable
Discharge Distance	1000 - 3000 m
Suction / Discharge Dia.	750mm / 750mm
Engine (s) Power	2800 - 3500 KW	Customizable
Main Engine Brand	Cummins / Weichai	Marine Grade
Cutter Head Power	Hydraulic Drive	High Torque
Hull Dimensions	Please contact for drawing	Dismountable
Operation System	PLC / Hydraulic	One-man operation

JLCSD750 Big Cutter Head Suction Dredger 8000 m3/h for Sea River Lake Dredging and Mining

Optional Devices:

* Anchor Booms: Vital components for maintaining secure and stable dredging operations, ensuring operational precision.

* Spud Carriage: Designed to enable precise positioning, optimizing dredging efficiency by facilitating careful location control.
* Submersible Pump: Significantly enhances dredging capabilities by easily reaching greater depths, expanding operational possibilities.
* Booster Pump: Increases power and efficiency, delivering sustained and robust dredging performance to tackle any challenge.
* DGPS Positioning System: Provides pinpoint accuracy in positioning and navigation, ensuring your dredging activities are conducted with precision and confidence.

Quality Assurance & Testing

Every Dredger is tested before delivery.

Ex-Factory Testing: Every JLCSD750 is assembled and tested in our factory's for 8+ hours before shipping.
Test Items: We test the hydraulic pressure, cutter rotation, pontoon welding, and engine load to ensure all systems function perfectly.
Customer Inspection: We invite you to visit our factory (or via live video call) to witness the testing run before shipping.
Designed as standard or with any International Classification Society Certificate like BV, RS, RINA, ETC.

Applications

River Sand Mining: Efficient extraction of sand for the construction industry.
Port & Harbor Maintenance: Clearing silt to maintain water depth for vessels.
Land Reclamation: Pumping sand to create new land for infrastructure.
Reservoir Desilting: Restoring water storage capacity.
Sea, Lake & Dam Dredging: Customized Dredging Solutions for Coastal Development, Inland Waterway Maintenance & Reservoir Sediment Management.
Mining Project in different water areas: Dredger with Mining platform to finish the dredging and mining procedures.

After-Sales Service

On-Site Assembly: We send 1-2 experienced engineers to your site to guide installation and train your local operators.

Spare Parts Supply: Standard spare parts are always in stock. We provide a recommended spare parts list for 1-year operation.

Lifetime Support: 24/7 technical support via WhatsApp/Email for the entire lifespan of the dredger.
