Pontoons Equipped Amphibious Excavator Working in Lake River

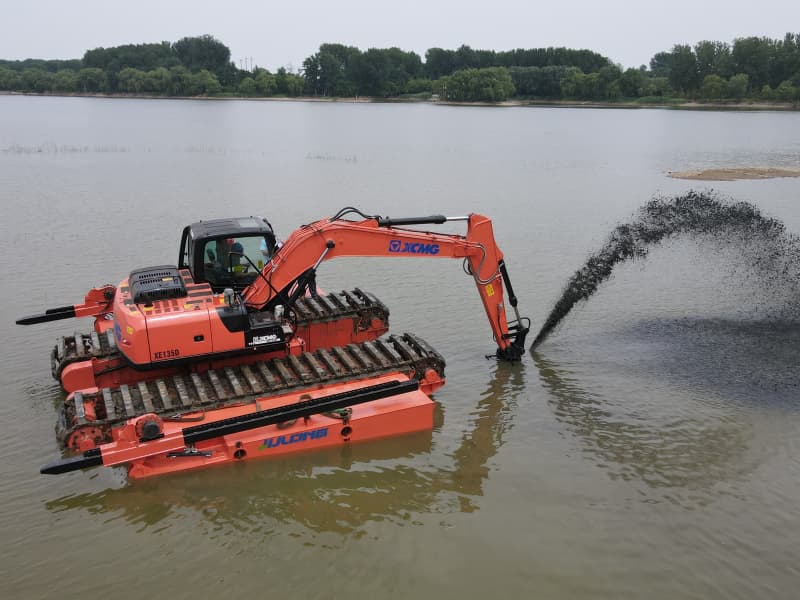

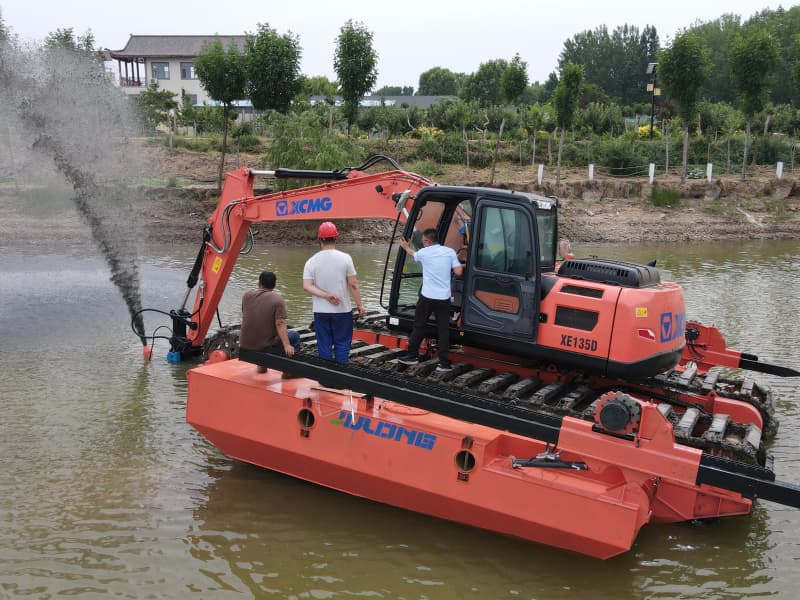

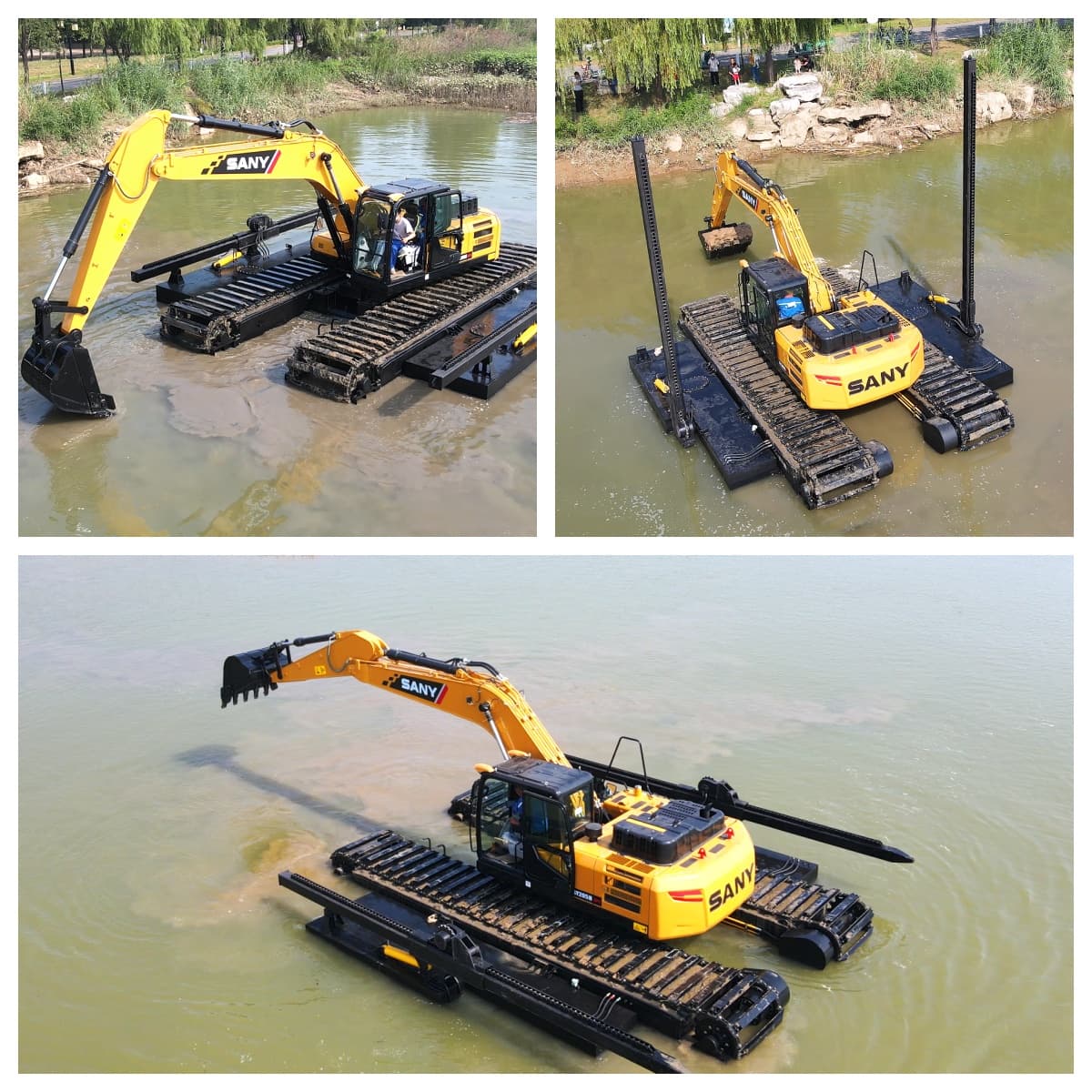

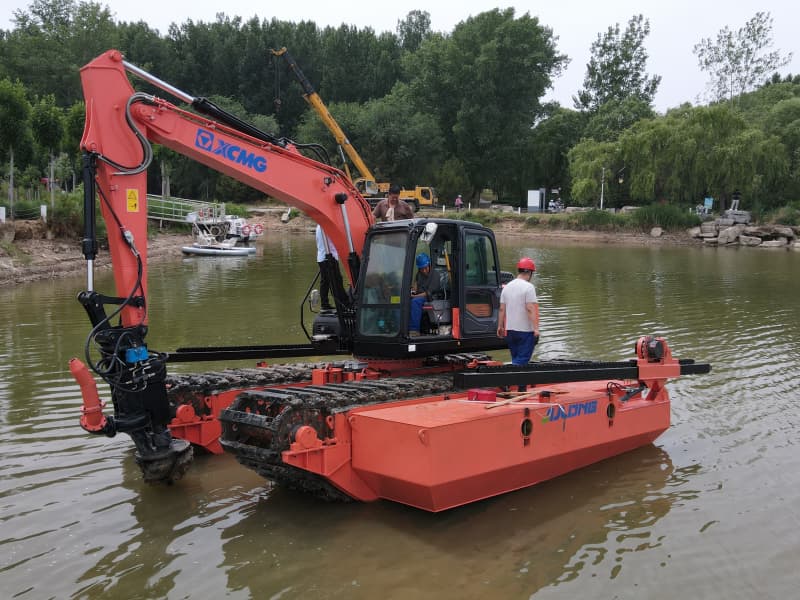

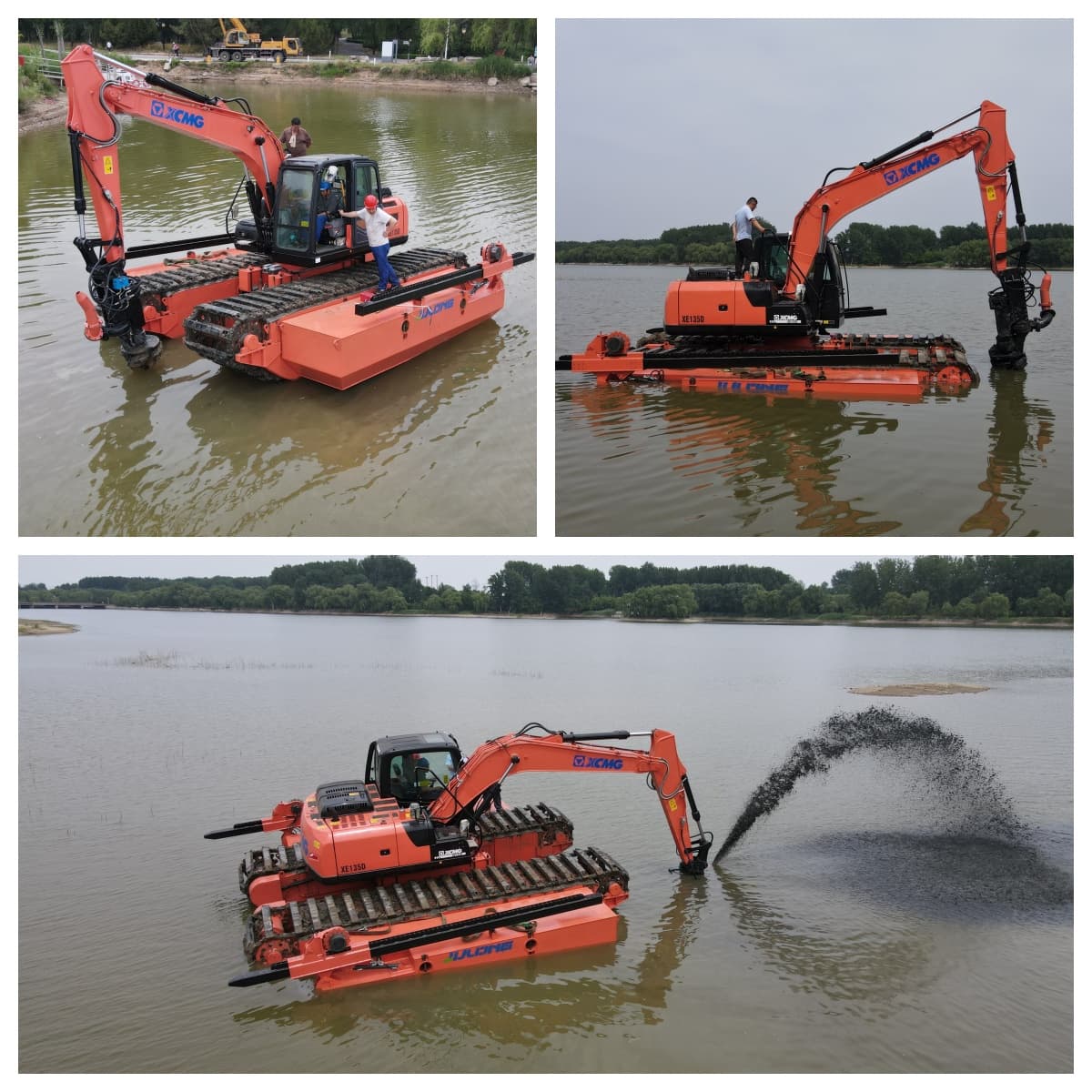

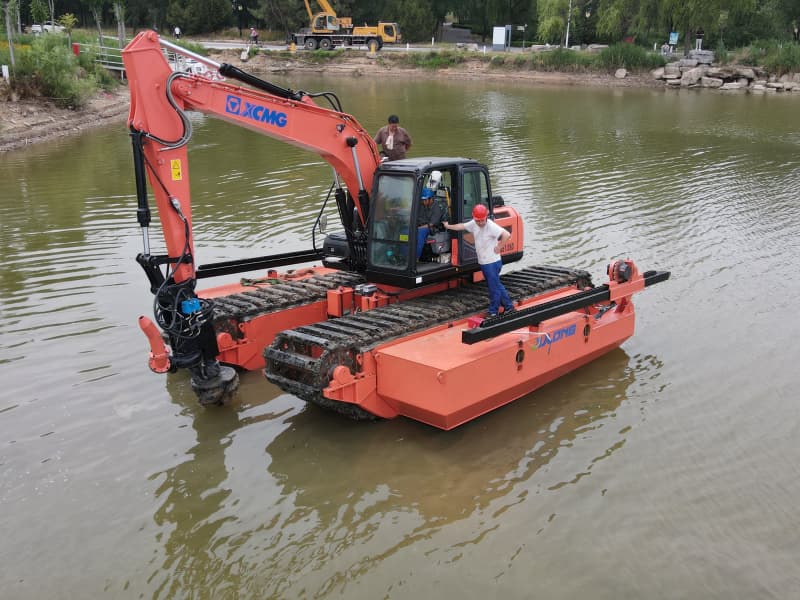

Name: Pontoons Equipped Amphibious Excavator Working in Lake River
Availability: InStock

JuLong Amphibious excavators are multi-purpose excavators used in land, shallow water, marsh and deep water areas. After years of practical testing, JuLong amphibious excavator has been recognized and trusted by the majority of users. The upper half structure can choose the excavator brand and all kinds of machine you need. Various types of buoyancy tank have been designed and widely used, which can be adapted to 5-40 ton excavator, and can also be customized according to your working conditions and requirements, in accordance with your exclusive scheme.

Inquiry Now

Features

Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
Optimal configuration of power and hydraulic unit (less operating costs)
Dismountable structure, easy to disassemble, and transportation.
High working range of the outrigger arm
Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
Cutter suction head can be changed for different situation
Easy access to all parts, especially the dredge pump wearing parts.
Freshwater cooling system.
Safe and easy to operate
Can be designed and fabricated according to your requirements

Technical Parameters

Description	JLAME4T	JLAME15T	JLAME20T	JLAME30T	JLAME50T
Boom Length	3200 mm	4650 mm	5700 mm	6150 mm	6900 mm
Arm Length	1500 mm	2500 mm	2900 mm	3200 mm	3550 mm
Bucket Capacity	0.22 m3	0.65 m3	1.0 m3	1.8 m3	2.61 m3
Max Digging Height	5960 mm	9080 mm	10120 mm	10750 mm	12050 mm
Max Digging Depth	3220 mm	4630 mm	5970 mm	6500 mm	6380 mm
Max Digging Reach	5955 mm	8850 mm	9860 mm	10950 mm	11440 mm
Max Digging Reach On Ground	5780 mm	7980 mm	9730 mm	10450 mm	11200 mm
Total Length During Parking	6685 mm	8470 mm	11250 mm	12540 mm	14910 mm
Total Width During Parking	2100 mm	4390 mm	4800 mm	6000 mm	6240 mm
Total Height During Parking	3400 mm	4030 mm	4120 mm	4280 mm	5000 mm

Pontoons Equipped Amphibious Excavator Working in Lake River The advantages of amphibious excavators include their versatility to transition seamlessly between land and water, their minimal ecological impact, and their operational stability due to floating pontoons and adjustable buoyancy systems.

They are also cost-effective as they can reduce the need for additional equipment like barges. The modular design allows for easy disassembly and transport to remote or challenging locations.Full dismantled and packed in different packages for easy transportation.. With this method, it will save much cost for buyer transporting.
