Self Propelled Amphibious Mutli-Functional Dredger (500 m3/h) for Shallow Water Area

Name: Self Propelled Amphibious Mutli-Functional Dredger (500 m3/h) for Shallow Water Area
Availability: InStock

Julong JLAMD260 amphibious multi-function dredger adopts the design of pontoon with for stabilizers including front brackets and spuds, which can move on land and sail in water. It is equipped with replaceable working units such as excavating bucket, dredge pump, water weed cutter, collecting rake and T-type cutter, which can complete the operation like excavating, harvesting, mud suction & discharge, and weeds & garbage cleaning etc.It can be applied to the transformation of plain marshes and low-yield farmland, drinking water projects and saline-alkali land, urban drinking water and water supply projects, tidal flats and sea reclamation projects

Inquiry Now

JLAMD260 Amphibious Multifunction Dredger Functions:

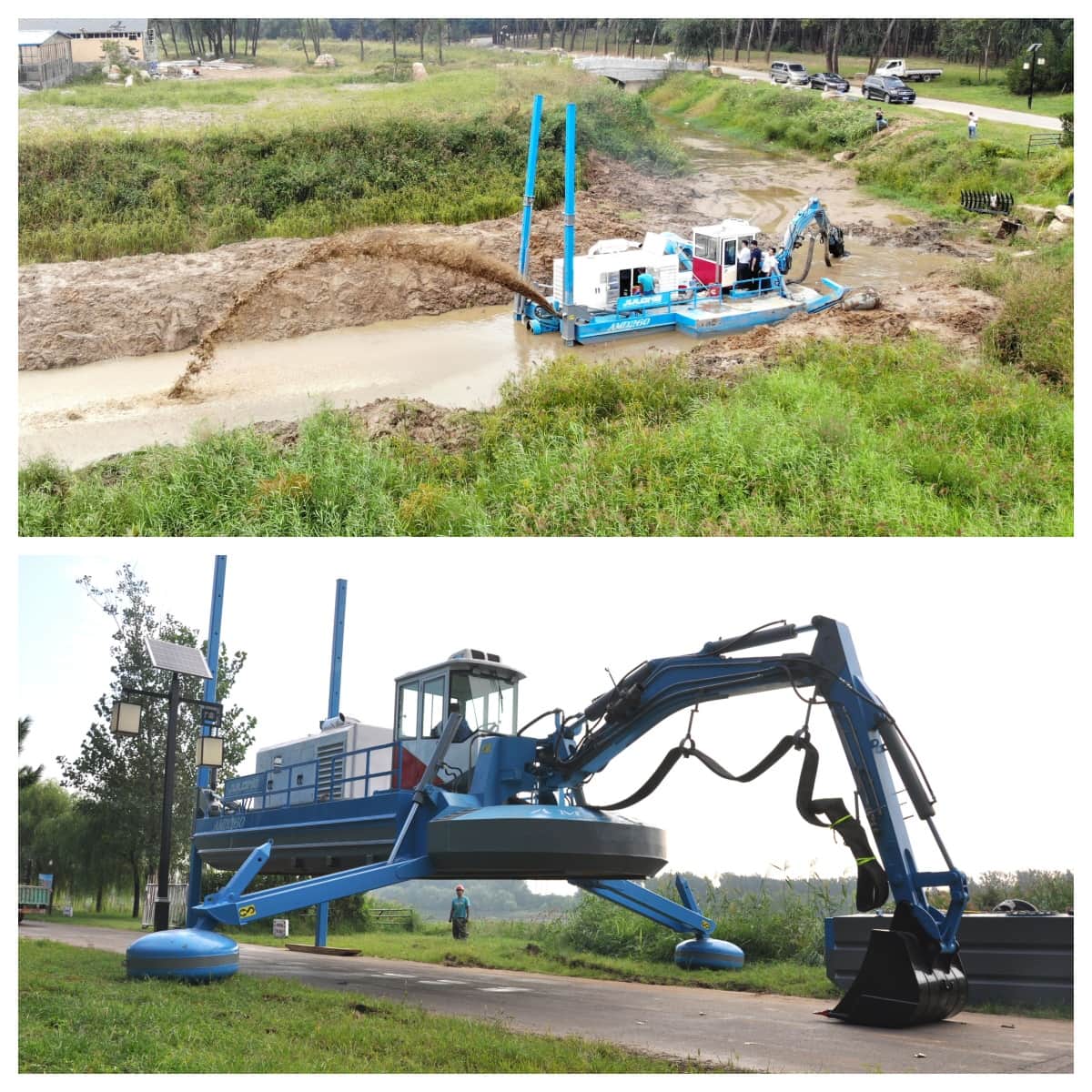

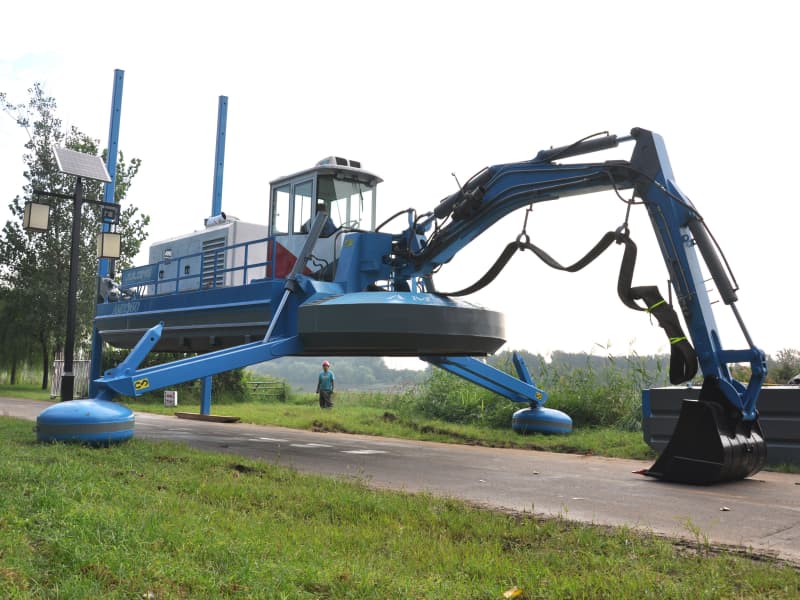

Mobility on land

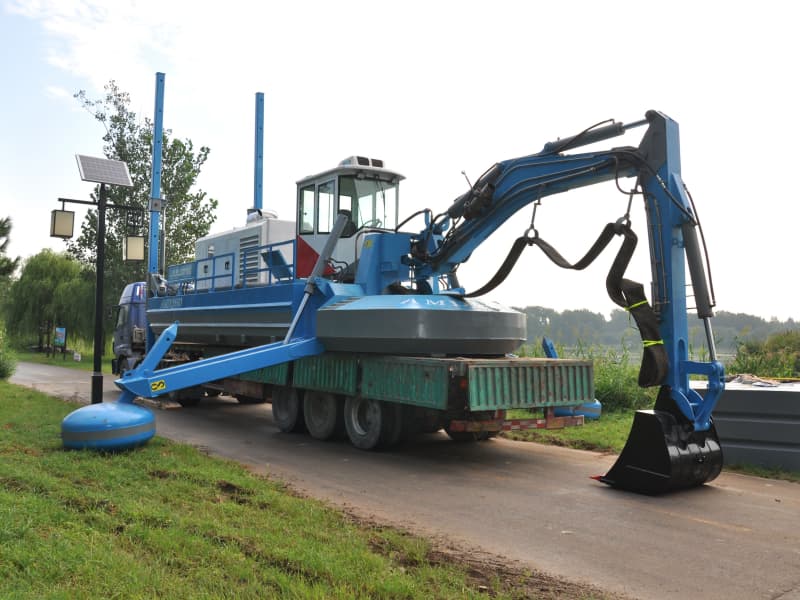

It can be transported on road by trailer.

Integrated transportation without assembly.

Launching and landing by itself without crane.

Mobility in water

Self-propelled

Movement in very shallow waters can be achieved by means of excavation arms, positioning piles and

thrusters.

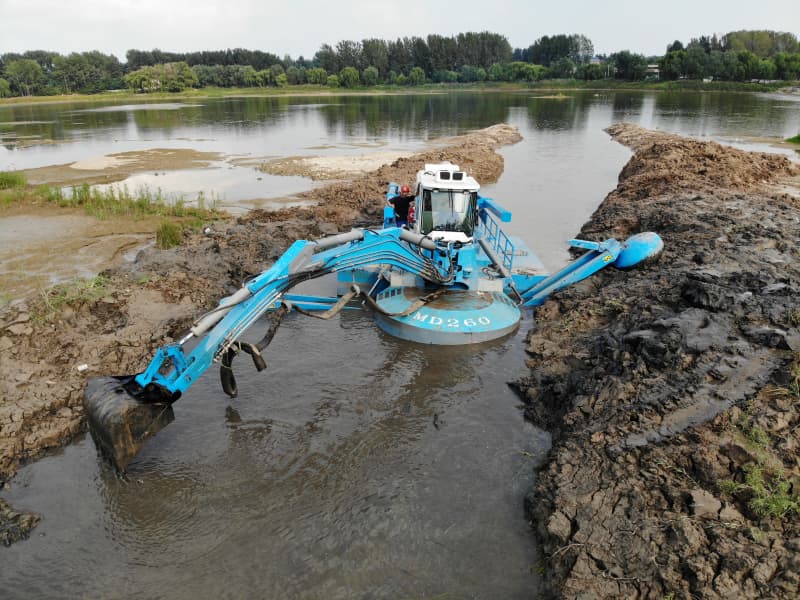

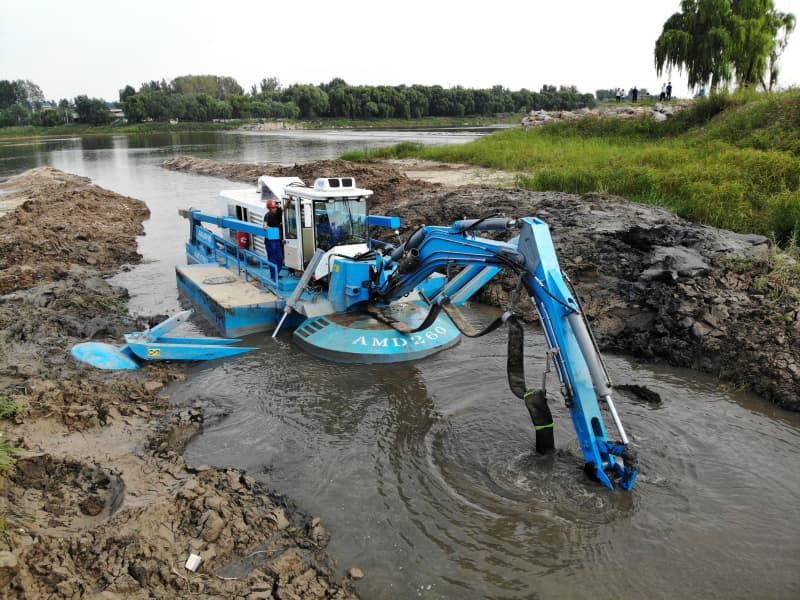

Backhoe work

Four position piles provide anchoring.

A variety of tools can be selected: bucket, grab, rake.

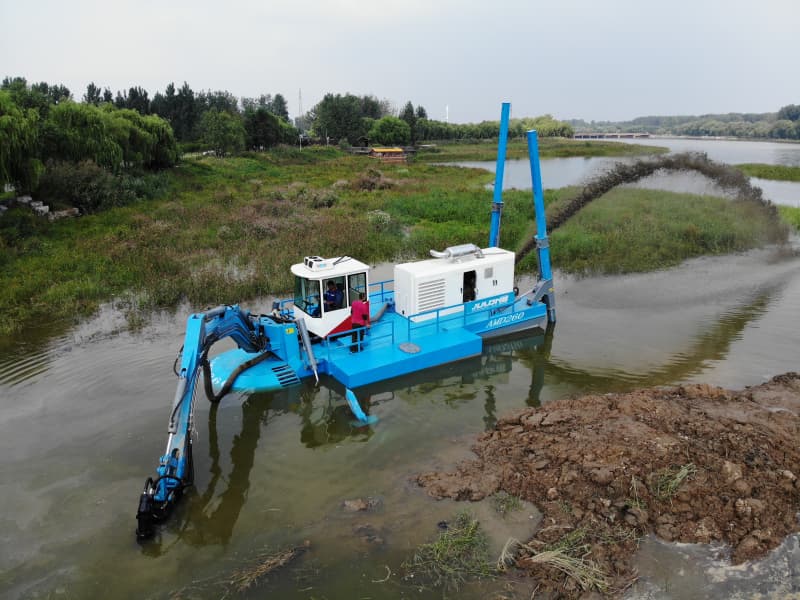

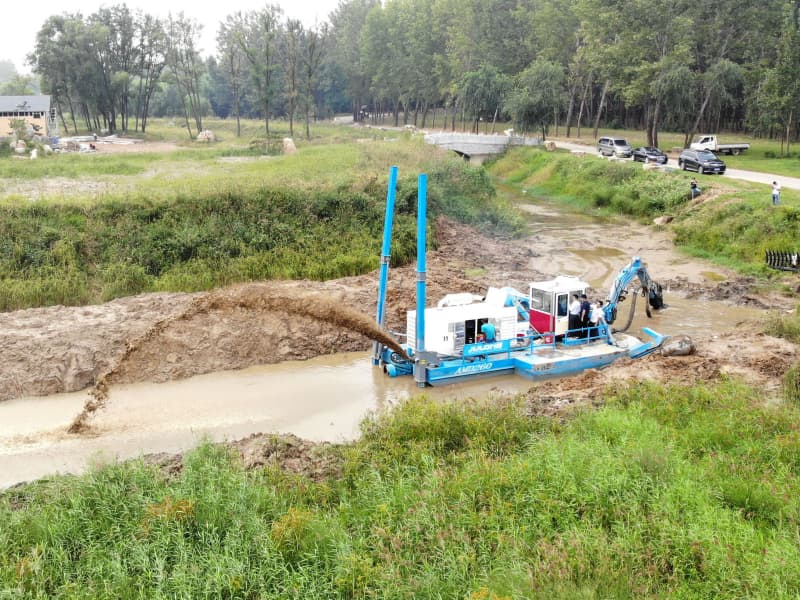

Cutter Suction dredging

With cutter head, suitable for most soil.

Powerful mud pump, discharge distance up to 1.2 km.

Can work in shallow water where other dredgers cannot work.

Self Propelled Amphibious Mutli-Functional Dredger (500 m3/h) for Shallow Water Area

Parameters

Transport Size	14.7 x 3.4 x 3.3 m	Transport Weight	26T
Hull	CCS Standard	Engine	Cummins
Fuel Tank	1000 L	Dredging Depth	6 m
Pump Flow	500 M3/h	Discharge Distance	1200 m

Our Service:
* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

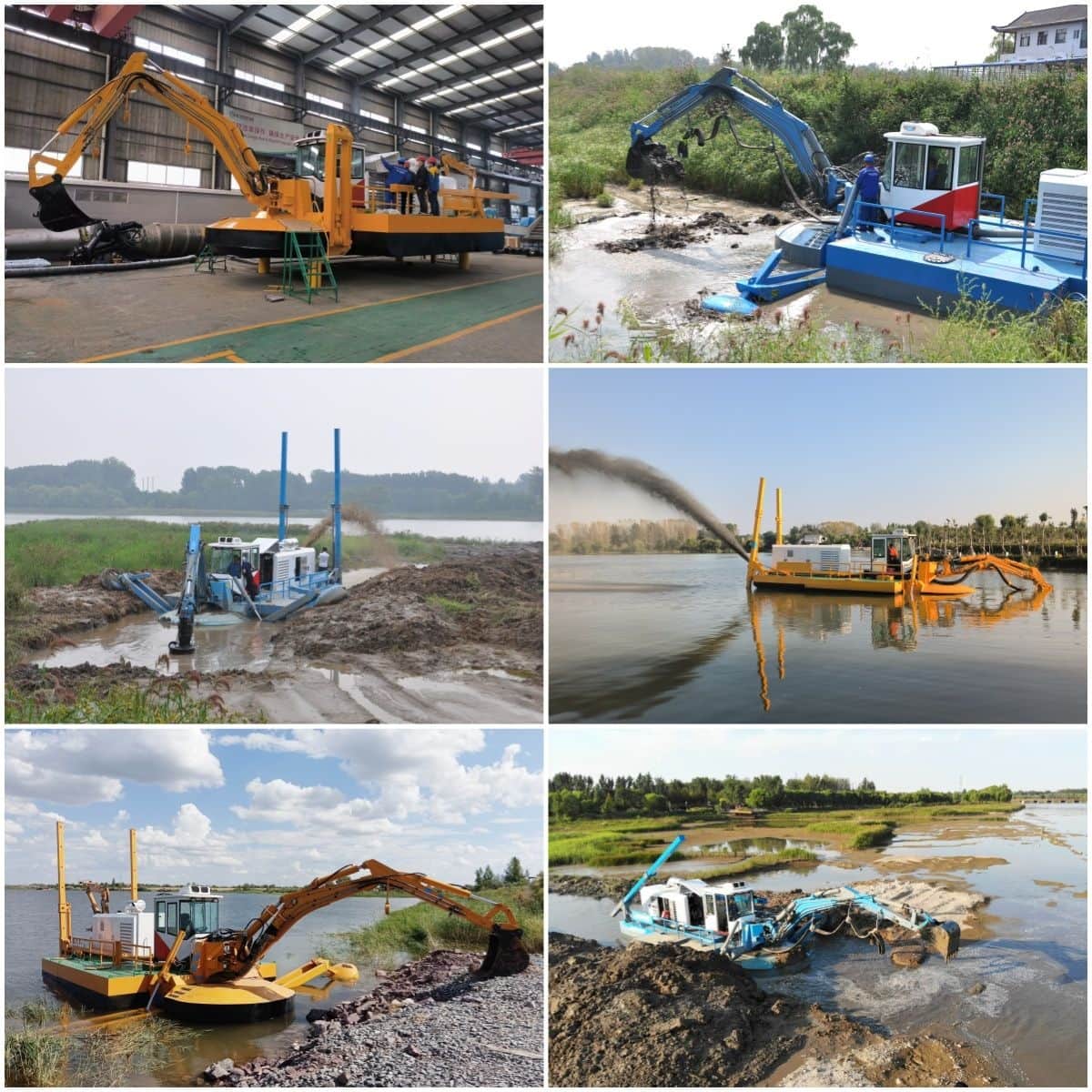

Applications

1. River and Canal Maintenance: Sediment Dredging, Flood Risk Mitigation, and Navigation Channel Protection

2. Water Pollution Remediation: Invasive Aquatic Plant Clearance, Litter & Contaminant Dredging, and Waterbody Ecological Balance Restoration

3. Industrial & Municipal Engineering: Reservoir Maintenance, Industrial Pond Management, and Subaqueous Infrastructure Protection for Prolonged Asset Lifespan

4. Flood Control & Disaster Response: Rapid Emergency Response to Sudden Sedimentation or Flood Events, Enhancing Emergency Handling Capabilities
